Akuvox E18C Door Intercom & Access Control unit with Face recognition, Bluetooth, RFID, QR Code, 7″ Screen and 4G LTE option

Akuvox E18C is a 7″ face recognition door intercom and access control unit featuring touchless building access, wireless communication, hassle-free management and more.

  • Visible light facial recognition;
  • Dual cameras with anti-spoofing algorithm against photo and video attack;
  • 20,000 face capacity & 20,000 card capacity;
  • Face recognition duration less than 0.2s/user, face recognition accuracy rate greater than 99.5%;
  • Allows both audio and video communication to an IP phone, mobile client, or softphone;
  • Multiple verification methods including: face, PIN, cards NFC, BLE and QR codes;
  • Stand-alone operation;
  • Configuration via web browser;

To order Door strike , RFID Fobs, etc., please scroll down to Accessories and Complementary Products.

We offer online price beat guarantee, Please contact us for price or add item to Quote Request.



Clear
View List

Description

Akuvox E18C is a 7″ face recognition door intercom and access control unit featuring touchless building access, wireless communication, hassle-free management and more. The E18C provides a modern, stylish, contactless and highly secure way to unlock doors or gateways and is ideal for both multi-tenant / multi-dwelling residential apartments, as a well as commercial / shared office environments.

E18C is a safe and convenient commercial-grade device for both intercom & access control. With the latest deep learning algorithm and dual cameras liveness detection technology, it can be deployed in the field for community and commercial applications, for the implementation of smart access control.

E18C Features

  • Digital Touchscreen Access Control Unit
  • Also functions as a SIP Door Intercom Unit
  • Multiple secure authentication methods: face recognition, Bluetooth, RFID and QR code scanning, PIN Code
  • Anti-spoofing algorithm against photo and video attack
  • IP65 protection rating for outdoor use
  • 20,000 face capacity & 20,000 card capacity
  • Mask Detection
  • Body Temperature Detection (when used with MD02 – sold separately)
  • Power-over-Ethernet
  • TF Card Slot
  • 7 inch LCD digital colour display

Akuvox E18C also supports integration with Akuvox Smartplus Mobile Video Service to enable receiving video intercom calls on mobiles / touch screen monitors. The unit has a protection rating of IP65 – suitable for both outdoor and exposed environment applications. However when combined with the MD02 temperature detection module it is not suitable for outdoor use.

Akuvox E18 Datasheet

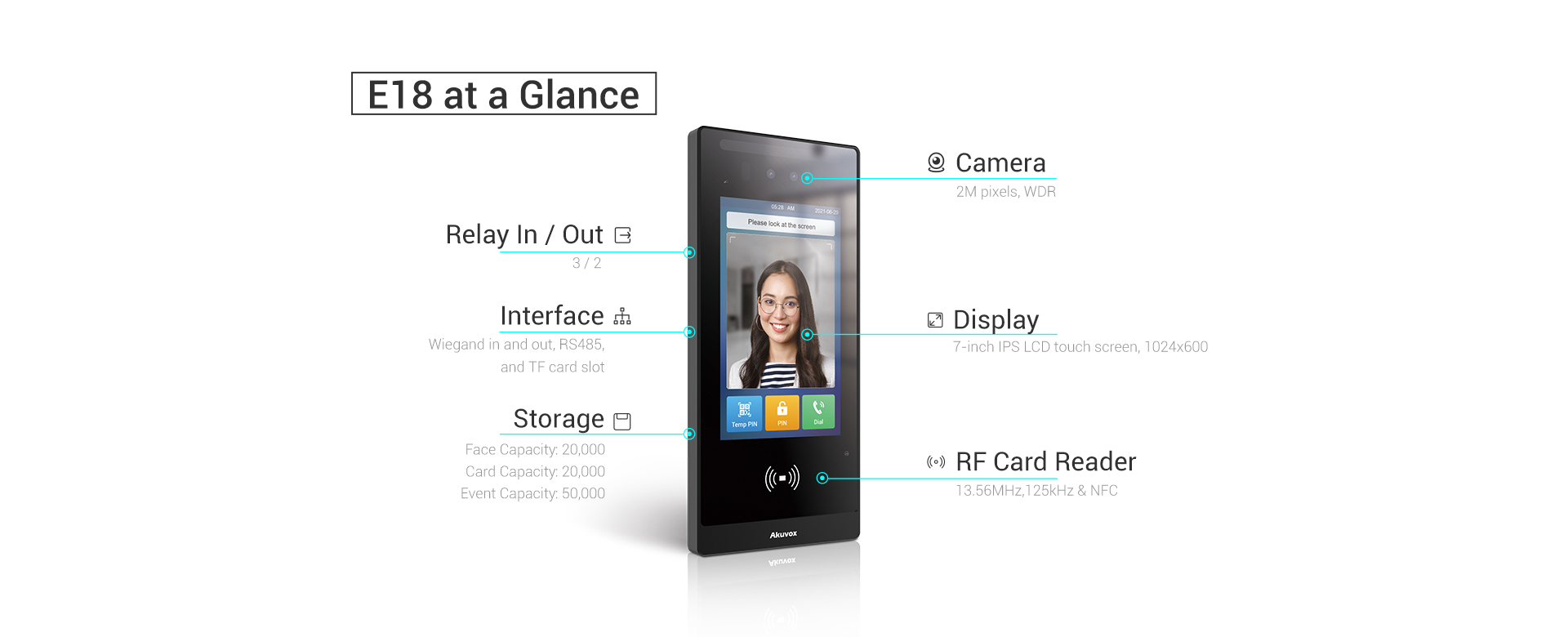

Specifications

Description E18C
Power Supply PoE or 12V DC
Recommended Cabling Cat5e or better
Authentication Methods Face Recognition, Bluetooth (BLE), RFID, QR Code scanning, PIN Code
RFID Supported Frequencies 13.56MHz 125 kHz NFC
Identification Speed Less than 200ms
Operating System Linux
Body Temperature Detection Requires additional MD02 (sold separately)
RAM / ROM 1GB / 8GB
Installation format Wall-mounted
Housing Material ABS Plastic
Relay Port 3 In / 2 Out
OSDP Support Yes
Wiegand Port Yes
RS485 Port Yes
Camera 2MP, WDR
User ID Capacity Face Capacity – 20,000 / Card Capacity – 20,000
Display Screen 7 inch colour LCD, 1024 x 600
IP Protection Rating IP65
Dimensions 120(W) x 275(H) x 34.6(D)mm
Weight (Net) 0.70kg
Weight (Gross) 0.80kg

Additional information

Weight 1 kg

Accessories

PoE Switch

Electric Strike

RFID Cards / Fobs

Downloads

Akuvox E18 Datasheet

Video Presentation
