2N 9153102 IP UNI 2 Button- Cost effective intercom

  • Simple installation
  • Flush / Surface mount options
  • Door lock control
  • 2 Back lit Call buttons
  • Web interface for configuration
  • Ideal for Hospitals, Educational Institutions,Stairwells, etc.

2N IP uni comes with flush mount box , to order Surface mount boxDoor Strike,  etc. please browse Accessories and Complementary Products below.

We offer best Price Guarantee, Please contact us for quote.

View List

Description

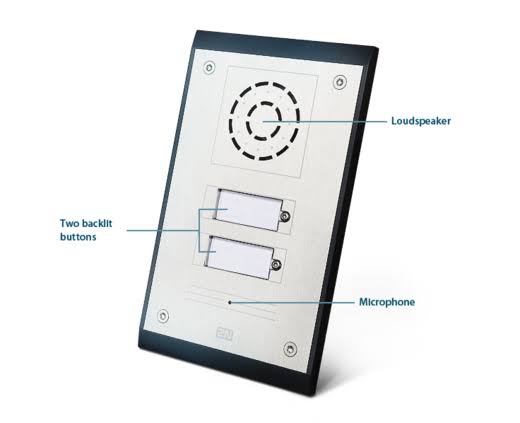

2N 9153102 IP UNI 2 Button intercom is an ideal solution for door communication in a regular outdoor and indoor environment, for example at the entrance to an office building or family home. The well designed construction allows simple installation on the surface or recessed in a wall or plasterboard. The use of IP technology and an SIP protocol gives the 2N 9153102 IP UNI 2 Button intercom a broad range of options for connection to telephone systems. Operation and configuration are simplified by a clear web interface or software application that you can also use to manage more extensive installations with a larger number of intercoms.

The 2N Uni device is both simple to operate and incredibly easy to install; installation is simply a case of installing the device on the wall and connecting an Ethernet cable to the device socket (powered via PoE). The 2N Uni allows for up to 3 numbers to be dialed sequentially and also allows for opening of doors or gates using a code.

Features

  • IP connected Door Intercom
  • 2 x Back-lit Intercom Buttons
  • Cost-effective IP door intercom solution
  • Stainless steel front panel
  • Compatible with 2N IP Manager control software for complete system and device control and configuration
  • Tamper Switch for detection of forced opening
  • Time profiles allows calls to be routed to different numbers/IP addresses/end points dependent on the time of day
  • DTMF switch control allows remote control of door locks (via IP phone keypad, for example)

2N IP UNI Datasheet

Specifications

Description 9153102
Signalling protocol SIP 2.0 (RFC – 3261)
Buttons
Button version fully back-lit
Number of buttons 2
Audio
Microphone 1 integrated microphone
Speaker 1W
Audio stream
Codecs G.711, G.729
Interface
Power 12V±15%/2A DC or PoE
PoE PoE 802.3af (Class 0 – 12.95W)
LAN
Passive switch NC/NO contacts, max 30V/1A AC/DC
Active output 8V – 12V DC/500mA
Mechanical properties
Operating temperature / Storage temperature -40°C – 55°C / -40°C – 70°C
Storage relative humidity 10% – 95% (non-condensing)
Dimensions 193(H) x 115(W) x 57(D)mm (max)
Protection level IP54
Weight (Net) 0.65kg
Weight (Gross) 0.86kg

Accessories

PoE Switch

Downloads

2N IP UNI Datasheet
