2N 9155301CBS / F IP Solo Intercom with HD camera

A compact IP intercom that would be a great addition to you smart home entrance.

  • Sharp video day and night
  • Surface or Flush mount option
  • Calls to Mobile Phone or tablet
  • Stylish and durable
  • Flush 2N 9155301CBF  or Surface 2N 9155301CBS  option

To order flush mount Recess Box / surface mount Backplate,  Indoor MonitorsDoor Strikes etc. please browse Accessories & Complementary Products below.

We offer best Price Guarantee, Please contact us for quote.

Clear
View List

Description

Stay informed about everything happening outside your entrance. The 2N 9155301CBS / F IP Solo Intercom lets you communicate with your visitors via your mobile phone and the 2N IP intercom installed at your door. You will be available to your visitors at all times with continuous video monitoring of your house entrance.

Features

  • Sharp Video Day & Night – The hidden camera guarantees a sharp video of the visitor even at night thanks to its high resolution settings and infrared backlight.
  • Stylish & Durable – The 2N 9155301CBS / F IP Solo Intercom brushed nickel gives the intercom a luxury appearance, but don’t be mistaken, all components are manufactured from the industrial high-grade materials to ensure its durability.
  • Camera with night vision – See who is standing in front of your door, even in total darkness. Moreover, the camera is hidden from normal view. The intruder has no clue they’re being monitored.
  • Easy integration with Home Automation systems – Easily link the intercom to the existing home automation system via open API.
  • Picture to email -2N 9155301CBS / F IP Solo Intercom allows you to email snapshots of the visitor captured by the camera at the time of the call.
  • Both surface & flush mount options – Choose from two intercom installations according to what might suit better to your entrance.
  • External camera – Simply connect an external IP camera to the intercom to cover all the blind spots.
  • Calls to mobile phone and tablet – The 2N® Mobile Video cloud service allows the 2N 9155301CBS / F IP Solo intercom to call a mobile phone or tablet.

Specifications

Description 9155301CBS /F
Signalling protocol SIP 2.0 (RFC – 3261)
Buttons 1 x Transparent buttons with white backlight and easily removable label
Microphone 1 built-in microphone
Speaker 2W (Sound pressure at 1 kHz at 1 m distance)
Codecs G.711, G.722, G.729, L16/16kHz
Camers resolution (JPEG) 1280 x 960 px
Camera resolution (video call) 640 x 480 px
Viewing angle 120° (H), 90° (V), 145° (D)
Night vision Yes
Video codecs H.263+, H.263, H.264, MJPEG
Power supply 12v ±15% / 2A DC or PoE
PoE PoE 802.3af (Class 0 – 12.95W)
LAN Screw-in connector, 10/100BASE-TX with Auto-MDIX
Supported protocols SIP2.0, DHCP opt. 66, ONVIF, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog
Operating temperature -40°C ~ 60°C (expected value, hasn’t been confirmed yet)
Ingress protection IP54
Vandal protection IK08
Finish Black
Dimensions 107(W) x 130(H) x 28(D) mm / 130(W) x 153(H) x 5(D) mm
Weight (Net) 1.00kg
Weight (Gross) 1.30kg

Additional information

Weight 1 kg

Accessories

PoE Switch

Electric Strike

2N Intercom Monitors

2N Ethernet to 2 Wire adaptor kit

2N 9159010 Security Relay

2N External IP Web Relay

2N IP Solo Flush Mount Recess Box

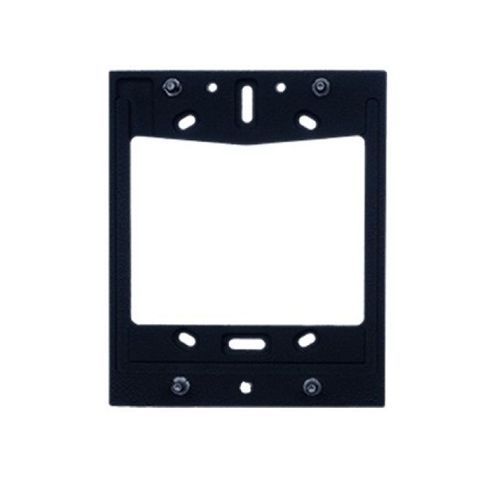

2N IP Solo Surface Mount Backplate

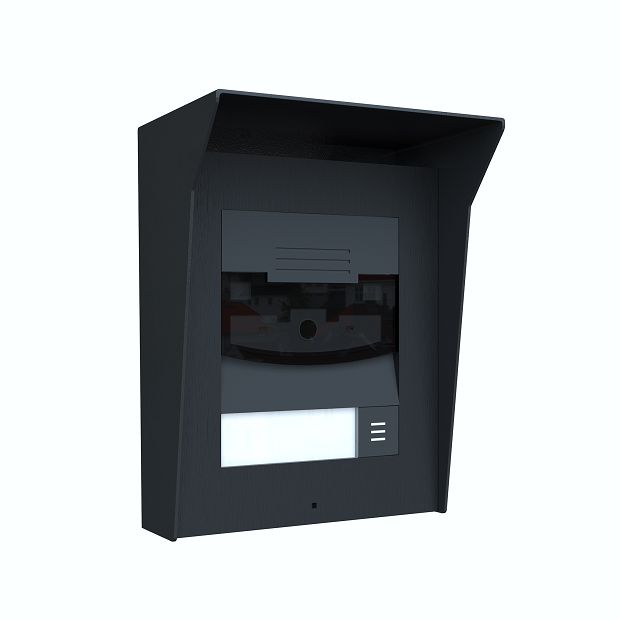

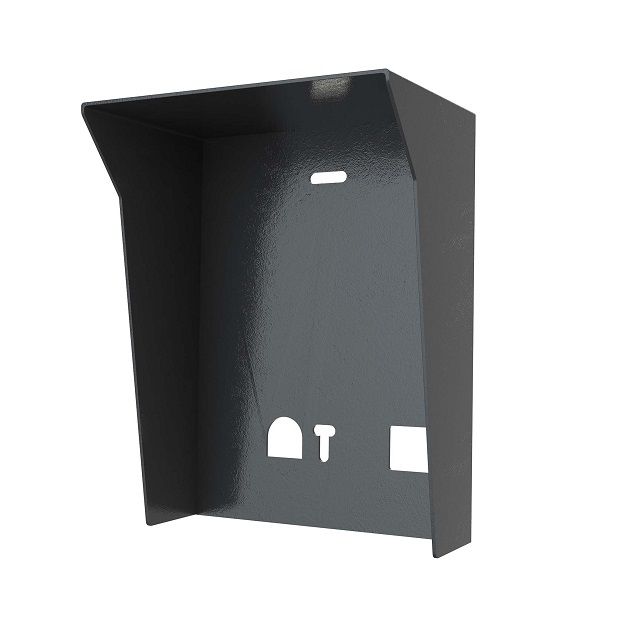

2N IP Solo Surface Mount Wedge Backplate

2N IP Solo Glass Mount

Downloads

2N IP Solo Datasheet
