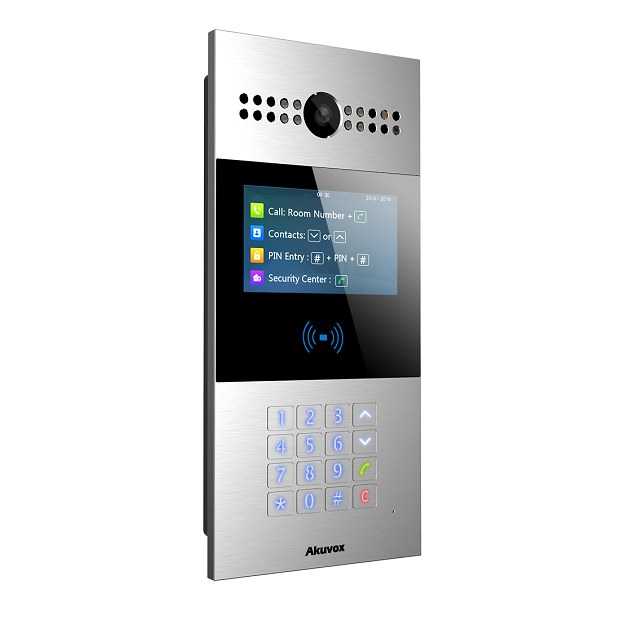

Akuvox R28A – 4G Apartment intercom with 4.3″ LCD, RFID, Keypad

$1,700.00

Advanced features with colour LCD for easy navigation

  • Supports  Video Calls over 4G network *
  • 4.3 inch colour TFT LCD for Apartment Directory display
  • PoE (IEEE802.3af, Power-over-Ethernet) or 12V DC
  • Two-way audio communication over IP networks with Echo Cancel feature
  • Complies with SIP standard for easy integration in every SIP capable PBXes
  • Waterproof and Dust Proof IP 65 Rating – ideal for Australian Conditions
  • High Intensity white IR LEDs for Night Vision
  • Backlit LCD with Backlit Numeric Keypad with extra buttons
  • 13.56 MHz  & 125 kHz Card Reader
  • Weigand and RS485 Port Support
  • 3 x Output relays on board
  • Option to integrate external Web Relay
  • Supports ONVIF standard for easy integration with NVR

Akuvox R28A is available in both flush and surface mount options, please select from menu below.

* Video calling over 4G network is a subscribed service, please contact us for more information.

Clear

Description

Akuvox R28A 4G Cloud Intercom solution is cost effective and eliminates the need for investing in unnecessary cabling. Akuvox R28A  delivers intercom calls directly to your Mobile over the 4G network. Akuvox R28A Cloud Solution is ideally suited for Apartments where cabling does not exist or running new cabling is not feasible. System functions like adding, modifying and deleting users, assigning individual access levels, programming scheduled door locking and unlocking and other vital access control actions can be performed remotely.

How does Akuvox R28A Cloud system work ?
Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With Akuvox Cloud this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet. Via the Akuvox Smartplus App you are not only able to talk to the visitor but also see them live in HD quality. You will never miss a visitor again. With Akuvox Cloud you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home.

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox’s Video Doorphone R28A enables you to easily monitor an entrance door or gate and gives you the peace of mind knowing that your facility is more secure.



Additional information

Weight N/A

Specifications

  • At a Glance

    Vandal resistant body, with flush buttons;
    Wide-angle camera: 116° (H), 60° (V);
    PoE (IEEE802.3af, Power-over-Ethernet);
    Two-way audio communication over IP networks with Echo Cancel feature;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
    Complies with ONVIF standard for easy integration with any network surveillance system;
  • Physical & Power

    Front panel: Aluminum
    Display: 4.3 Inch, color TFT LCD
    Camera: 2M pixels, automatic lighting
    Numeric keypad with extra buttons
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RS485 port: Support
    RF card reader: 13.56MHz & 125kHz
    Relays out: 3
    Inputs: 3
    Microphone: -40dB
    Speaker: 8Ω / 2W
    Power out: 12V/400mA
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Water-proof & Dust-proof: IP65
    Installation: Flush-mounted & Wall-mounted
    Flush-mounted DIM: 280x130x68mm
    Wall-mounted DIM: 280x130x38mm
    Working Humidity: 10~90%
    Working Temperature: -40°C ~ +55°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.7”, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
    Video codec: H.264, H.265
    Video resolution: up to 1920x1080p
    Max. image transfer rate: 1080p – 30fps
    Viewing angle: 116°(H) / 60°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    Compatible to 3rd-Party-Video components, e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office door phone with on-site or hosted IP-PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control

Accessories

PoE switches & Injectors

Intercom Call Receiving Monitors / Phones

Electronic Door Strike

Intercom SIP Servers

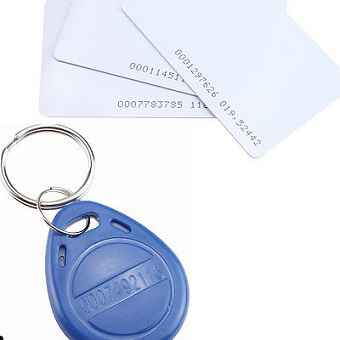

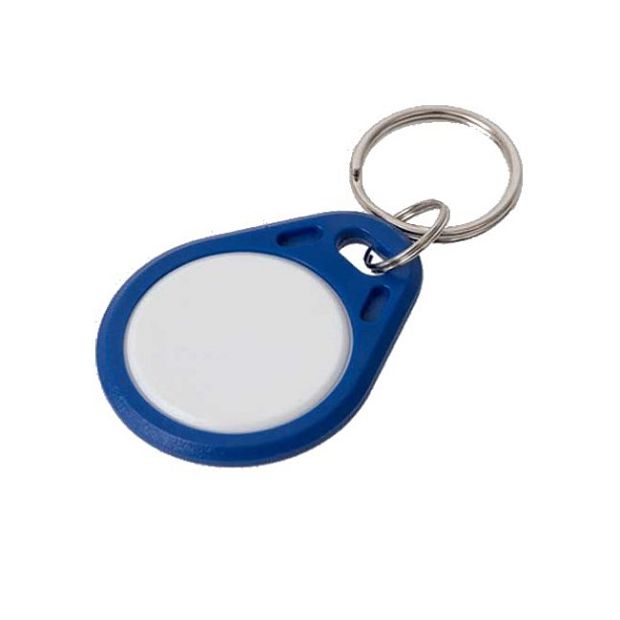

RFID Cards / Fobs

Downloads

Akuvox R28A Video intercom Datasheet
